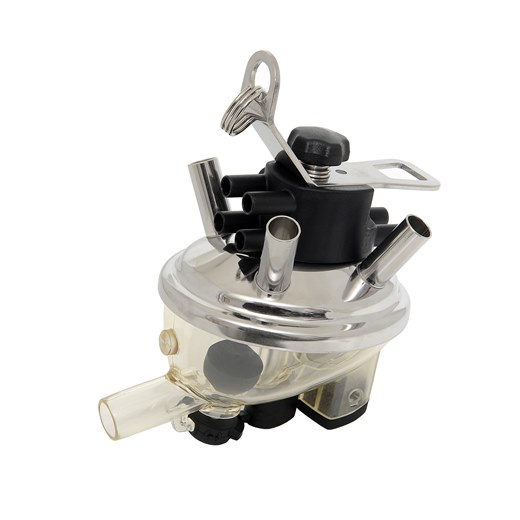

1539333 - ORB350 HD WITH VALVE-30°-15X13 F/R PARALLEL
технические спецификации
| Weight | 600 gr |
| Pulsation cross | FRONT REAR PARALLEL |
| Air outlet nipples OD x ID | 10 x 7,5 mm |
| Milk-inlet nipples OD x ID | 15x13 mm - straight cut - 30° |
| Dimensions (LxWxH) | 155 x 112 x 135 mm |
| Shut-off valve | yes |
| Air inlet nipples OD x ID | 10 x 8 mm |
| Capacity | 350 cc |
| Back-Flush nipple | no |
| Milk-outlet tube OD x ID | 21 x 16 mm |
